VIENNESE
![]() ![]() ![]() ![]() ![]() ![]() DESCRIPTION

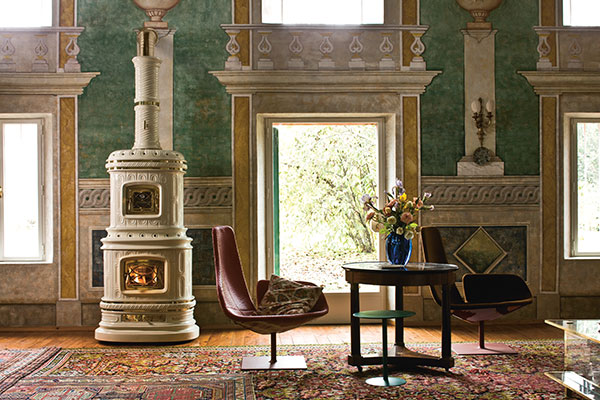

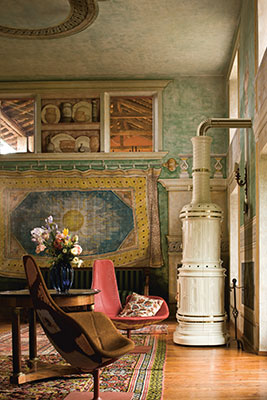

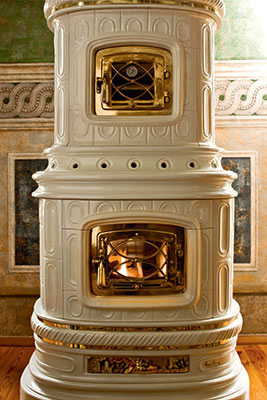

This model owes its name to an exigent lady who once commissioned Maestro Sergio Leoni to design a stove for her villa, on the outskirts of Vienna. She wanted a stove that was large, yet of extremely refined and harmonious line and geometry. This led to a fortunate exchange of ideas between the two. The result was an original and highly successful model, now also produced in a version with additional refractory mass.
FAMILY - Viennese L/a, Viennese FINISHES
Gloss

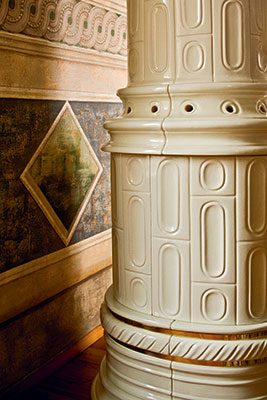

![]() Craquele white ![]() Craquele ivory ![]() Craquele cella ![]() Green ![]() Bordeaux ![]() Honey ![]() Blue ![]() Black Mat
![]() Craquele white matt ![]() Matt black Metal Finishing
![]() Nickel ![]() Brass SIZES AND DIMENSIONS
![]() A - Height of the body 172 cm B - Height of the column 45,5 cm C - Width 15,5 cm D - Width 91 cm E - Depth 70 cm F - Pipe axis distance - rear side 35 cm G - Pipe axis distance - lateral side
45,5 cm TECHNICAL SPECIFICATIONS
Model
VIENNESE Energy efficiency class A+ Fuel Wood Nominal heat output 14,60 kW Reduced heat output 6,60 kW Efficiency 85,80 % Hourly consumption 3,60 kg/h Heatable volume 359.00 m3 Smoke outlet Ø 120,00 mm Weight 327,00 kg Smoke temperature 208,00 °C Smoke flow rate 12,70 g/s Ceramic, brass and cast iron
PIPES AND COLUMNS
![]() A / B - Column with intermediate
126 / 85,5 / 43 cm A / B - Column intermediate
18,5 cm ACCESSORIES
Pipe / Elbow / Rosette
![]() A - Pipe
Ø 12 cm / h 15 cm B - Pipe
Ø 12 cm / h 25 cm C - Pipe
Ø 12 cm / h 50 cm D - Pipe
Ø 12 cm / h 100 cm E - Elbow
90° / Ø 12 cm F - Elbow
45° / Ø 12 cm G - Rosette
Ø 12 cm Black metal pipe
![]() A - Height column
97 / 73 / 50 cm B - Height elbow
17 cm DOWNLOAD
Click here
to download the technical documentation for this appliance. |
